NissanVanette SerenaKVC2301.1997 - 01.1998Electrics240 - wiring (Denso)

240 - wiring (Denso) for Nissan Vanette Serena KVC23



Frame / SeriesKVC23 / C23 body W (wagon )engine CD20ET (2000 diesel turbo ﾃﾞﾝｾｲ)drive 2WD (two-wheel drive )
Manufacture period01.1997 - 01.1998grade FXtransmission AT (automatic transmission )


Scheme 240D_001 Scheme 240D_002 Scheme 240D_003 Scheme 240D_004 Scheme 240D_005 Scheme 240D_006 Scheme 240D_007 Scheme 240D_008 Scheme 240D_009 Scheme 240D_010 Scheme 240X_001
Applies for modelsManufacture periodSpec
W.CD20T +4DV.CD20 +5DV.CD2005.1994 - 01.1997ｺﾝﾊﾟｰﾄﾒﾝﾄﾊｰﾈｽ & ﾌｨｯﾃｲﾝｸﾞ ﾊﾟｰﾂ
W.CD20ET +4DV.CD20 +5DV.CD2001.1997 - 01.1998ｺﾝﾊﾟｰﾄﾒﾝﾄﾊｰﾈｽ & ﾌｨｯﾃｲﾝｸﾞ ﾊﾟｰﾂ
W.CD20ET +4DV.CD20 +5DV.CD2001.1998 - ...ｺﾝﾊﾟｰﾄﾒﾝﾄﾊｰﾈｽ & ﾌｨｯﾃｲﾝｸﾞ ﾊﾟｰﾂ

Open full screen pictureOpen full screen picture
Up to the top

083636162D
24028M - harness, sub
24090 - harness, front compartment
24229Q - bracket, junction
24311 - block, fuse
24370 - connector assembly, fusible link
24370+A - connector assembly, fusible link
24370+B - connector assembly, fusible link
24370+C - connector assembly, fusible link
24370+D - connector assembly, fusible link
24381 - housing, fusible link holder
24382R - cover, fusible link holder
25411 - holder, fusible link
25411+A - holder, fusible link

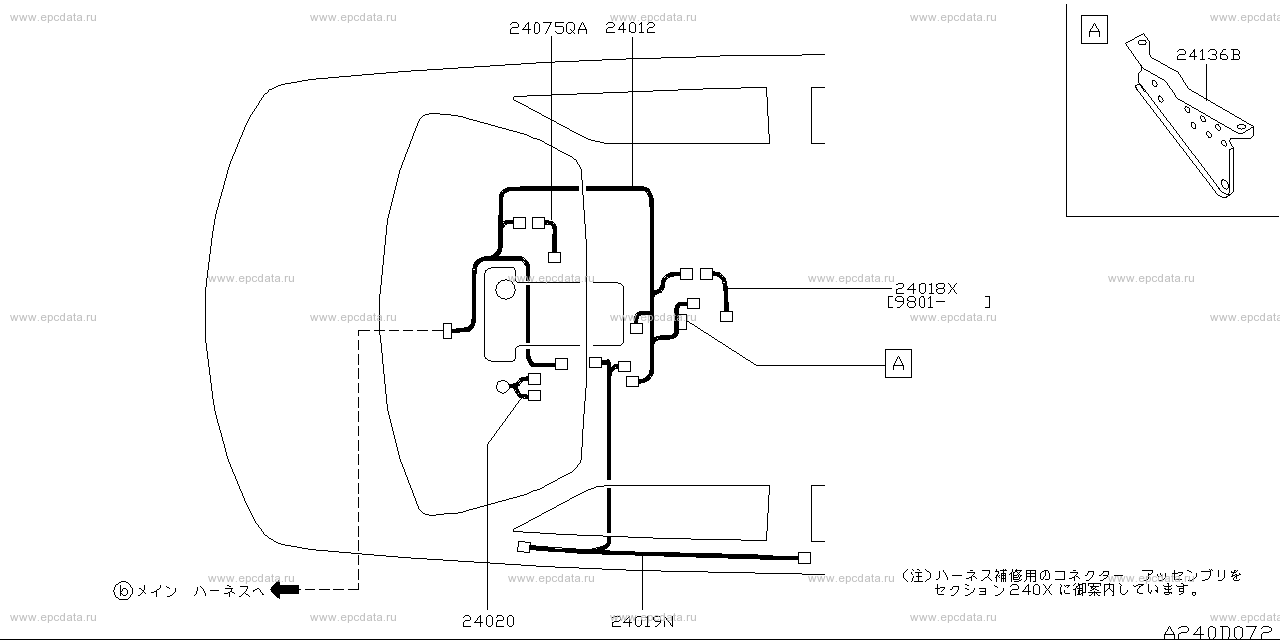

Applies for modelsManufacture periodSpec
W.CD20T +4DV.CD20 +5DV.CD2005.1994 - 01.1997ｴﾝｼﾞﾝﾙｰﾑ,ｲﾝｽﾄﾙﾒﾝﾄﾊｰﾈｽ & ﾌｨｯﾃｲﾝｸﾞﾊﾟｰﾂ
W.CD20ET +4DV.CD20 +5DV.CD2001.1997 - 01.1998ｴﾝｼﾞﾝﾙｰﾑ,ｲﾝｽﾄﾙﾒﾝﾄﾊｰﾈｽ & ﾌｨｯﾃｲﾝｸﾞﾊﾟｰﾂ
W.CD20ET +4DV.CD20 +5DV.CD2001.1998 - ...ｴﾝｼﾞﾝﾙｰﾑ,ｲﾝｽﾄﾙﾒﾝﾄﾊｰﾈｽ & ﾌｨｯﾃｲﾝｸﾞﾊﾟｰﾂ

Open full screen pictureOpen full screen picture
Up to the top

24012 - harness assembly, engine room
24018X - harness, sub
24019N - harness, instrument sub
24020 - harness assembly, alternator
24075QA - harness, engine sub
24136B - bracket, connector
Applies for modelsManufacture periodSpec
W.CD20T +4DV.CD20 +5DV.CD2005.1994 - 01.1997ﾊﾞｯﾃﾘｰｹｰﾌﾞﾙ & ﾌｨｯﾃｲﾝｸﾞﾊﾟｰﾂ
W.CD20ET +4DV.CD20 +5DV.CD2001.1997 - 01.1998ﾊﾞｯﾃﾘｰｹｰﾌﾞﾙ & ﾌｨｯﾃｲﾝｸﾞﾊﾟｰﾂ
W.CD20ET +4DV.CD20 +5DV.CD2001.1998 - ...ﾊﾞｯﾃﾘｰｹｰﾌﾞﾙ & ﾌｨｯﾃｲﾝｸﾞﾊﾟｰﾂ

Open full screen pictureOpen full screen picture
Up to the top

0854351242
0894120700
0894121000
0894121500
0894122000
24010 - harness assembly, main
24028MA - harness, sub
24130N - diode
24130NA - diode
24167B - harness, sub
24170M - harness, airbag room
24230N - bracket
24312P - label, fuse block
25410 - block assembly, fuse
25410G - puller, fuse
25419P - bracket, fuse block
25467 - fuse,3A

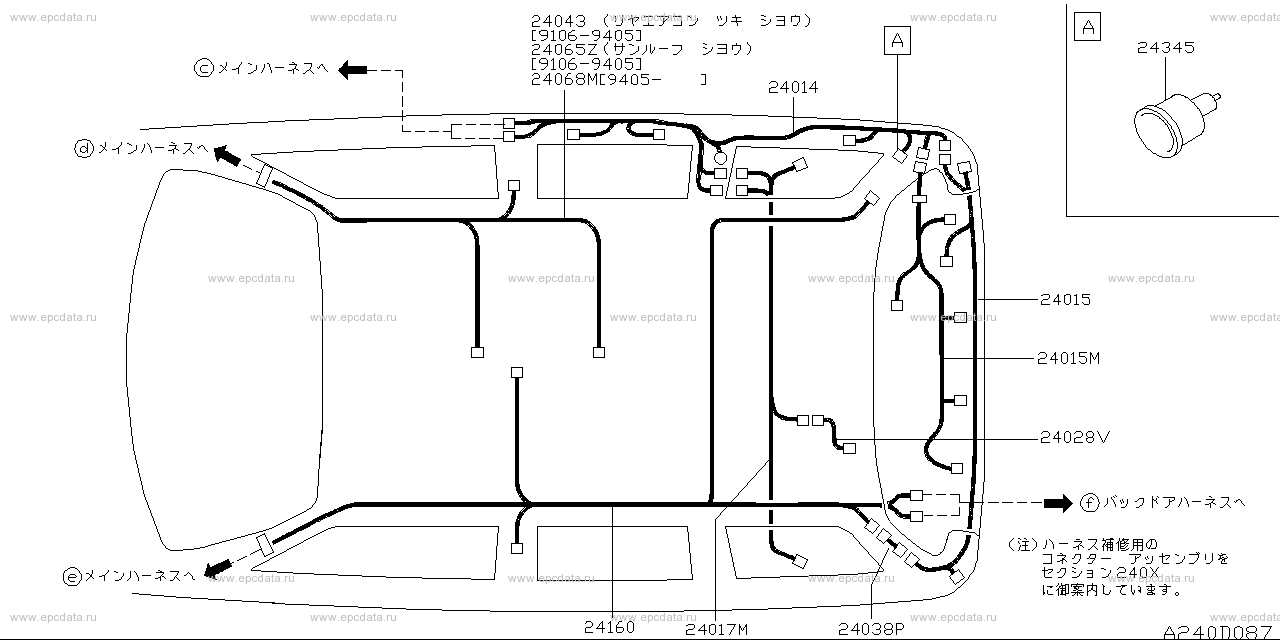

Applies for modelsManufacture periodSpec
W.CD20T +4DV.CD20 +5DV.CD2005.1994 - 01.1997メインハーネス ＆ フィッテイングパーツ
W.CD20ET +4DV.CD20 +5DV.CD2001.1997 - 01.1998メインハーネス ＆ フィッテイングパーツ
W.CD20ET +4DV.CD20 +5DV.CD2001.1998 - ...メインハーネス ＆ フィッテイングパーツ

Open full screen pictureOpen full screen picture
Up to the top

24014 - harness assembly, body
24015 - harness assembly, tail
24015M - harness, tail
24017M - harness, body NO2
24028V - harness, sub
24038P - harness, speaker
24043 - harness, air conditioner
24065Z - harness, sun roof
24068M - harness, roof
24160 - harness assembly, room lamp
24345 - cover, connector

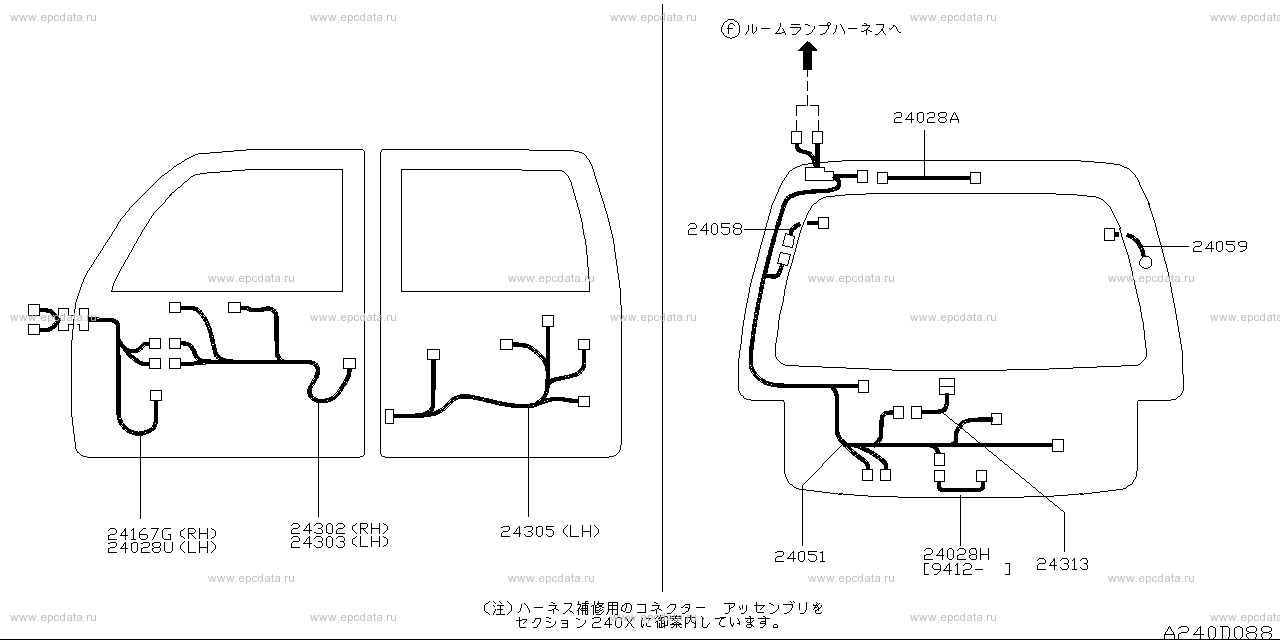

Applies for modelsManufacture periodSpec
W.CD20T +4DV.CD20 +5DV.CD2005.1994 - 01.1997ﾎﾞﾃﾞｰ,ﾙｰﾑ,ﾃｰﾙﾊｰﾈｽ & ﾌｨｯﾃｲﾝｸﾞﾊﾟｰﾂ
W.CD20ET +4DV.CD20 +5DV.CD2001.1997 - 01.1998ﾎﾞﾃﾞｰ,ﾙｰﾑ,ﾃｰﾙﾊｰﾈｽ & ﾌｨｯﾃｲﾝｸﾞﾊﾟｰﾂ
W.CD20ET +4DV.CD20 +5DV.CD2001.1998 - ...ﾎﾞﾃﾞｰ,ﾙｰﾑ,ﾃｰﾙﾊｰﾈｽ & ﾌｨｯﾃｲﾝｸﾞﾊﾟｰﾂ

Open full screen pictureOpen full screen picture
Up to the top

24028A - harness, sub
24028H - harness, sub
24028U - harness, sub
24051 - harness, back door
24058 - harness, defogger rear
24059 - harness, defogger earth
24167G - harness, sub
24302 - harness assembly, door front RH
24303 - harness assembly, door front
24305 - harness assembly, door rear LH
24313 - harness assembly, relay
Applies for modelsManufacture periodSpec
W.CD20T +4DV.CD20 +5DV.CD2008.1995 - 01.1997ドアハーネス
W.CD20ET +4DV.CD20 +5DV.CD2001.1997 - 01.1998ドアハーネス
W.CD20ET +4DV.CD20 +5DV.CD2001.1998 - ...ドアハーネス

Open full screen pictureOpen full screen picture
Up to the top

081110201B
24012C - screw
24018V - harness, sub
24022 - wire assembly, fusible link
24080 - cable assembly, battery earth
24090 - harness, front compartment
24110 - cable assembly, battery to starter motor
24230Q - bracket
24236W - bracket, connector
24250M - cap, terminal
24250MC - cap, terminal
24345W - cover, connector

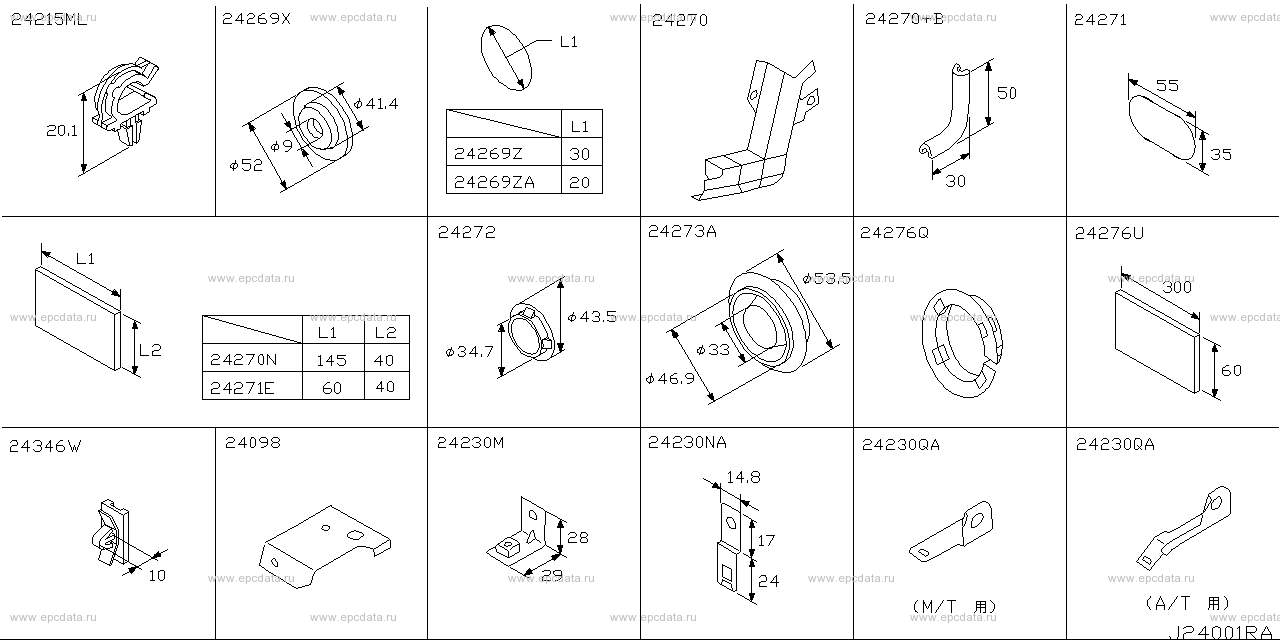

Applies for modelsManufacture periodSpec
W.CD20T +4DV.CD20 +5DV.CD2005.1994 - 01.1997ボデーフィッティング パーツ（３）
W.CD20ET +4DV.CD20 +5DV.CD2001.1997 - 01.1998ボデーフィッティング パーツ（３）
W.CD20ET +4DV.CD20 +5DV.CD2001.1998 - ...ボデーフィッティング パーツ（３）

Open full screen pictureOpen full screen picture
Up to the top

24098 - bracket, harness
24215ML - clip, wiring harness
24230M - bracket
24230NA - bracket
24230QA - bracket
24269X - plug, blind
24269Z - cover, hole
24269ZA - cover, hole
24270 - protector, harness
24270+B - protector, harness
24270N - protector, harness
24271 - protector, flat wire
24271E - protector, harness
24272 - protector, wiring harness
24273A - protector, harness
24276Q - protector, harness
24276U - protector, harness
24346W - clip, connector

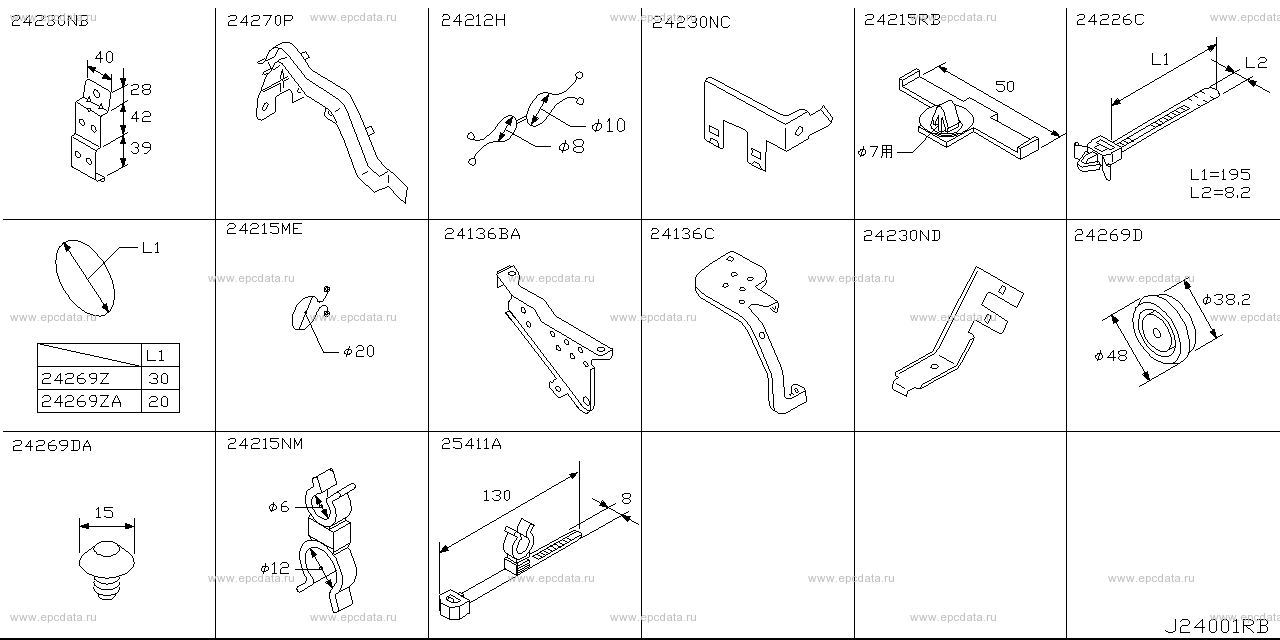

Applies for modelsManufacture periodSpec
W.CD20T +4DV.CD20 +5DV.CD2005.1994 - 01.1997ボデーフィッティング パーツ（４）
W.CD20ET +4DV.CD20 +5DV.CD2001.1997 - 01.1998ボデーフィッティング パーツ（４）
W.CD20ET +4DV.CD20 +5DV.CD2001.1998 - ...ボデーフィッティング パーツ（４）

Open full screen pictureOpen full screen picture
Up to the top

24136BA - bracket, connector
24136C - bracket, connector
24212H - clip, wiring harness
24215ME - clip, wiring harness
24215NM - clip, wiring harness
24215RB - clip, wiring harness
24226C - clip, wiring harness
24230NB - bracket
24230NC - bracket
24230ND - bracket
24269D - plug, blind
24269DA - plug, blind
24269Z - cover, hole
24269ZA - cover, hole
24270P - protector, harness
25411A - clip

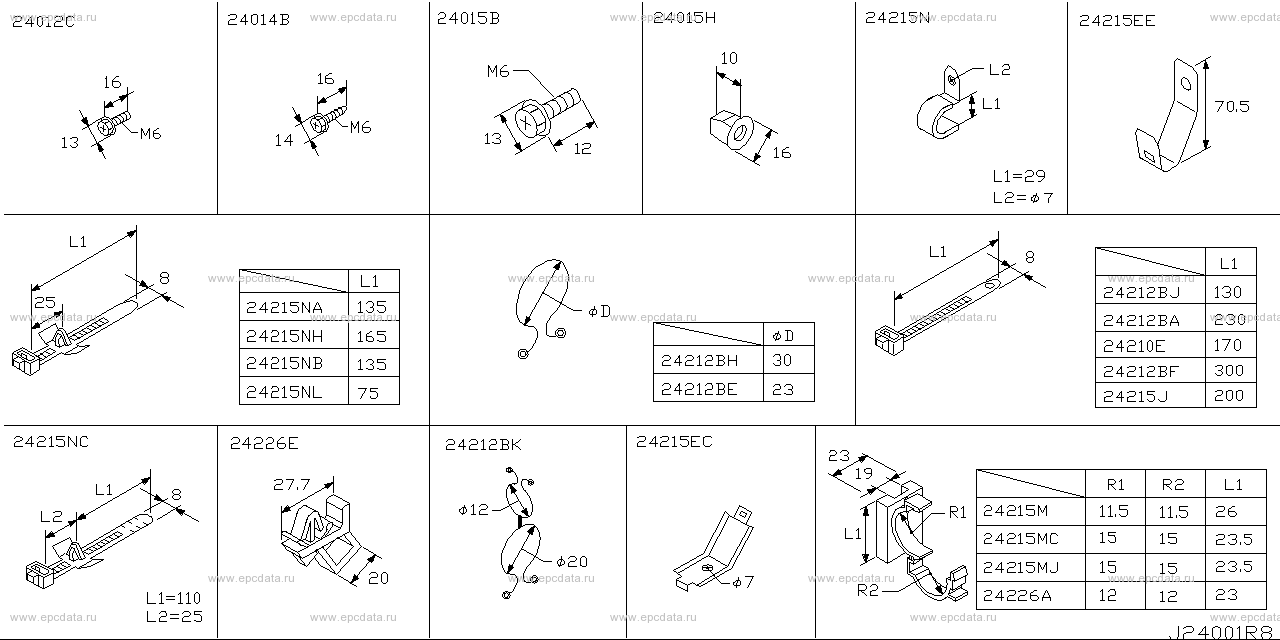

Applies for modelsManufacture periodSpec
W.CD20T +4DV.CD20 +5DV.CD2005.1994 - 01.1997ボデーフィッティング パーツ（１）
W.CD20ET +4DV.CD20 +5DV.CD2001.1997 - 01.1998ボデーフィッティング パーツ（１）
W.CD20ET +4DV.CD20 +5DV.CD2001.1998 - ...ボデーフィッティング パーツ（１）

Open full screen pictureOpen full screen picture
Up to the top

24012C - screw
24014B - screw
24015B - screw
24015H - grommet, screw
24210E - clip, wiring harness
24212BA - clip, wiring harness
24212BE - clip, wiring harness
24212BF - clip, wiring harness
24212BH - clip, wiring harness
24212BJ - clip, wiring harness
24212BK - clip, wiring harness
24215EC - clip, wiring harness
24215EE - clip, wiring harness
24215J - clip, wiring harness
24215M - clip, wiring harness
24215MC - clip, wiring harness
24215MJ - clip, wiring harness
24215N - clip, wiring harness
24215NA - clip, wiring harness
24215NB - clip, wiring harness
24215NC - clip, wiring harness
24215NH - clip, wiring harness
24215NL - clip, wiring harness
24226A - clip, wiring harness
24226E - clip, wiring harness

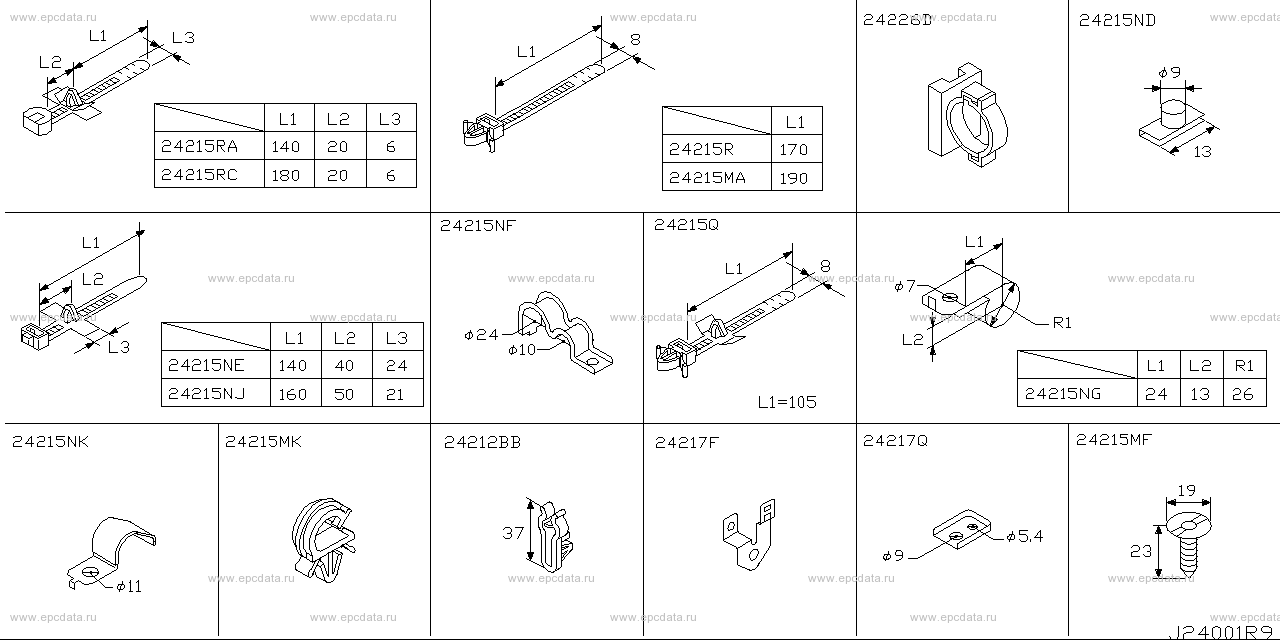

Applies for modelsManufacture periodSpec
W.CD20T +4DV.CD20 +5DV.CD2005.1994 - 01.1997ボデーフィッティング パーツ（２）
W.CD20ET +4DV.CD20 +5DV.CD2001.1997 - 01.1998ボデーフィッティング パーツ（２）
W.CD20ET +4DV.CD20 +5DV.CD2001.1998 - ...ボデーフィッティング パーツ（２）

Open full screen pictureOpen full screen picture
Up to the top

24212BB - clip, wiring harness
24215MA - clip, wiring harness
24215MF - clip, wiring harness
24215MK - clip, wiring harness
24215ND - clip, wiring harness
24215NE - clip, wiring harness
24215NF - clip, wiring harness
24215NG - clip, wiring harness
24215NJ - clip, wiring harness
24215NK - clip, wiring harness
24215Q - clip, wiring harness
24215R - clip, wiring harness
24215RA - clip, wiring harness
24215RC - clip, wiring harness
24217F - bracket, clip
24217Q - bracket, harness clip
24226D - clip, wiring harness
Applies for modelsManufacture periodSpec
W +4DV +5DV08.1995 - 01.1997コネクターＡＳＳＹ，リペアー
W +4DV +5DV01.1997 - 01.1998コネクターＡＳＳＹ，リペアー
W +4DV +5DV01.1998 - ...コネクターＡＳＳＹ，リペアー

Open full screen pictureOpen full screen picture
Up to the top

24342N - connector assembly, harness repair 1P
24342NA - connector assembly, harness repair 1P
24342PA - connector assembly, harness repair 2P
24342PB - connector assembly, harness repair 2P
24342PC - connector assembly, harness repair 2P
24342PE - connector assembly, harness repair 2P
24342Q - connector assembly, harness repair 3P
24342QA - connector assembly, harness repair 3P
24342QB - connector assembly, harness repair 3P
24342QC - connector assembly, harness repair 3P
24342QD - connector assembly, harness repair 3P
24342R - connector assembly, harness repair 4P
24342RA - connector assembly, harness repair 4P
24342RB - connector assembly, harness repair 4P
24342RC - connector assembly, harness repair 4P
24342RD - connector assembly, harness repair 4P
24342RE - connector assembly, harness repair 4P
24342RF - connector assembly, harness repair 4P
24342U - connector assembly, harness repair 5P
24342UA - connector assembly, harness repair 5P
24342UB - connector assembly, harness repair 5P
24342V - harness assembly, harness repair 6P
24342VA - harness assembly, harness repair 6P
24342VB - harness assembly, harness repair 6P
24342VC - harness assembly, harness repair 6P
24342Z - connector assembly, harness repair
24342ZA - connector assembly, harness repair
